A Proton Field Guide
Proton is good. Backed by Valve Software, Proton builds on existing F/OSS projects like Wine and DXVK to provide Linux support for video games. Performance can be quite good; I’ve heard Proton out-performs poorly optimized native ports in some cases.
Valve provides beta support for a small selection of titles. Less formal support is available for a larger set of titles through the “Steam Play->Enable Steam Play for all other titles” option in the Settings dialog.
Steam downloads the Windows version of a Proton-enabled app, but still stores files in the familiar
~/.steam/steam/steamapps/common/[appname] directory. On first launch, Proton provisions a Wine
prefix (created in
~/.steam/steam/steamapps/compatdata/[appid] by default) that holds
pertinent state data and a basic Windows filesystem in
filesystem is presented to the app as its root Windows filesystem. Save games are usually stored in the
prefix as well, making save game import complicated.
Windows applications frequently have additional dependencies like the Visual C++
Runtime Redistributables, and apps may require specific workarounds to run well in Wine environments.
Many of these concerns are managed by the app’s install script (usually
~/.steam/steam/legacycompat/iscriptevaluator.exe also runs inside the Wine environment during
initial provisioning and appears to manage Proton-specific dependencies and tweaks.
Provisioning New Apps
Games don’t launch with Proton support, but official Proton releases aren’t built for tinkering; community-sourced forks of the Proton project have flourished as a result. Glorious Eggroll is one popular fork that contains bleeding-edge app compatibility fixes, quality-of-life improvements, and a few workarounds that Valve doesn’t enable for legal reasons.
New apps generally don’t work out-of-the-box; a bit of sleuthing is usually required to identify
workarounds and missing dependencies. The Proton log is the first point of consult; this log can be
enabled per-app or by launching Steam with
PROTON_LOG=1 in the environment (just be sure
to close all open instances of Steam; the app’s environment is derived from the environment in which Steam
initially launches). I prefer the CLI, so I use something like this:
$ killall -w steam && PROTON_LOG=1 steam -applaunch [appid]
The Steam app ID can be found in the app’s Steam URL. For example, 3DMark’s URL is https://store.steampowered.com/app/223850/3DMark/ and its app ID is 223850.
Once an app issue has been root-caused, protonfixes (available as part of Proton-GE) is a handy
framework for applying a fix. protonfixes relies heavily on the protontricks wrapper for Winetricks, so common
workarounds are generally available as Winetricks verbs. For
example, if my fun new game requires the VC++ 2015 redistributable, I would use this in
from protonfixes import util def main(): util.protontricks('vcrun2015')
protonfixes supports more complicated workarounds as well; see Writing Gamefixes for details.
Provisioning Non-Steam Apps
Proton is mature enough to support apps outside of Steam, though setup is a bit more complicated. I prefer the CLI for such cases; Steam’s builtin “Add a Non-Steam Game to My Library” tends to obscure important details.
When Proton is launched from the command line, one must provide the
env var and the
SteamGameId env var must be set for Proton logging to function correctly. The
game ID will necessarily be fake; pick whatever suits you. For example, to run a hypothetical FunGame’s
$ SteamGameId=FunGame STEAM_COMPAT_DATA_PATH=~/Games/FunGame/ ~/.steam/steam/compatibilitytools.d/Proton-5.9-GE-6-ST/proton waitforexitandrun ~/Downloads/fun_game_installer.exe
Then, with the game installed:
$ SteamGameId=FunGame STEAM_COMPAT_DATA_PATH=~/Games/FunGame/ ~/.steam/steam/compatibilitytools.d/Proton-5.9-GE-6-ST/proton waitforexitandrun ~/Games/FunGame/pfx/drive_c/fungame/install/path/fungame.exe
Crafting a compatibility recipe requires some familiarity with Windows workloads and their requirements, but in general:
- Some apps work better with older Proton releases; the version of Proton used can be controlled in the app’s Properties dialog
- Hacking print statements into the proton script is useful for debugging startup issues (make a backup!)
- Dependency issues often show up in the Proton log (make sure SteamGameId is defined)
- Compatibilty reports from protondb often include useful tips and tricks
- Take inspiration from officially supported apps where possible:
ps auxw | grep -i [app]to identify the app PID, then run
strings /proc/[PID]/environ | sortto view the process environment.
- Snoop iscriptevaluator.exe operation. For example, iscriptevaluator.exe consumes a file named
~/steam/debian-installation/legacycompat/evaluatorscript_223850.vdfduring 3DMark first run setup; this temporary file describes the procedure for installing VC++ Runtime and DirectX redistributables.
- Install scripts from Lutris contain useful provisioning info
- Always test the final version of your recipe in a clean prefix

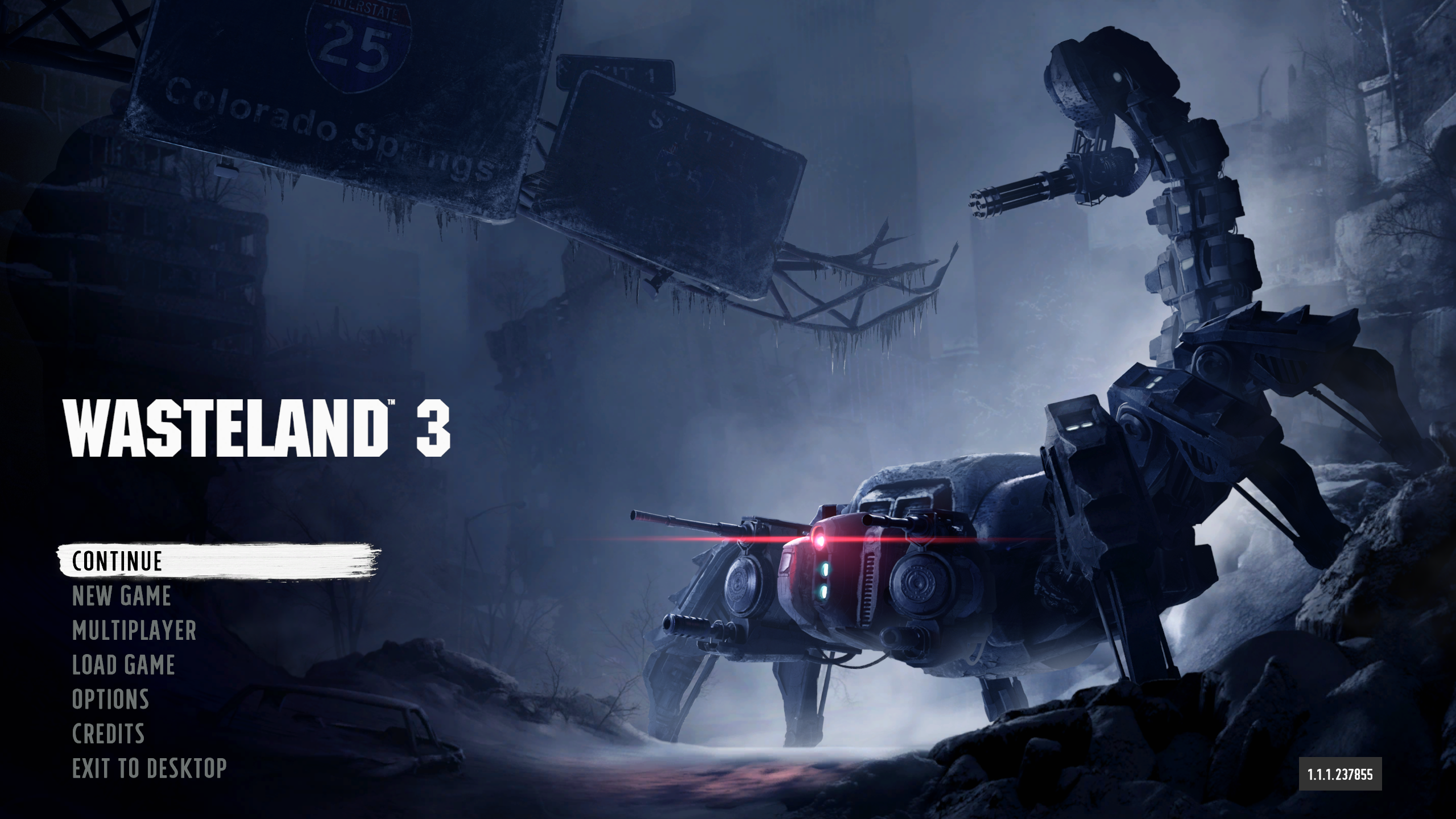

Example: GOG Galaxy + Wasteland 3
I opted for the DRM-free version of Wasteland 3 so I could exercise Proton’s advanced features:
- Download and install the Proton-5.9-GE-7-ST release.
- Download https://content-system.gog.com/open_link/download?path=/open/galaxy/client/setup_galaxy_18.104.22.168.exe (as seen in the Lutris install script).
- Create a compatibility recipe in
~/.config/protonfixes/localfixes/gog.py(derived from various protonfix gamefixes):
#pylint: disable=C0103 from protonfixes import util def main(): util.protontricks('corefonts') util.protontricks('mfc140') util.protontricks('win10')
- Run the GOG Galaxy installer:
$ SteamGameId='gog' STEAM_COMPAT_DATA_PATH=~/Games/GOG/ ~/.steam/steam/compatibilitytools.d/Proton-5.9-GE-7-ST/proton waitforexitandrun ~/Downloads/setup_galaxy_22.214.171.124.exe
- Click through the installer. You can launch GOG Galaxy immediately, or relaunch with:
$ SteamGameId='gog' STEAM_COMPAT_DATA_PATH=~/Games/GOG/ ~/.steam/steam/compatibilitytools.d/Proton-5.9-GE-7-ST/proton waitforexitandrun ~/Games/GOG/pfx/drive_c/Program Files (x86)/GOG Galaxy/GalaxyClient.exe
- Disable the GOG in-game overlay (Settings->Game features->Overlay) to prevent in-game stutter
- Install Wasteland 3 through the GOG Galaxy interface.
- Launch and enjoy. One can also launch the game though CLI:
$ SteamGameId='gog' STEAM_COMPAT_DATA_PATH=~/Games/GOG/ ~/.steam/steam/compatibilitytools.d/Proton-5.9-GE-7-ST/proton waitforexitandrun ~/Games/GOG/pfx/drive_c/Program\ Files\ \(x86\)/GOG\ Galaxy/Games/Wasteland\ 3/WL3.exe
As of this writing, Wasteland 3 will eventually terminate with an error, “eventfd: Too many open files” (observed while launching the game directly). The existing workaround hasn’t worked around the issue.
